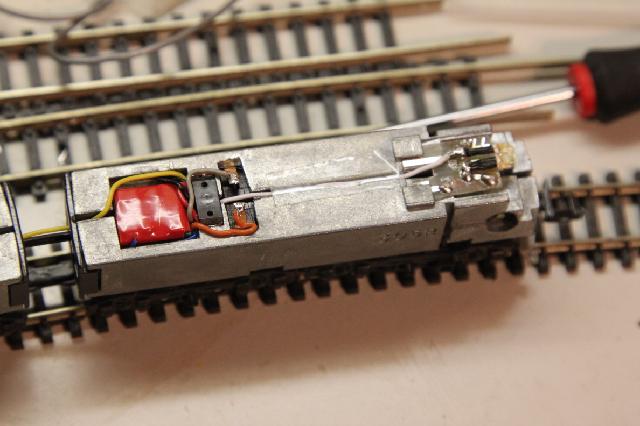

- Description: 1. Soldered grey and orange to the motor terminals.
2. Cut the copper on the LED PCB so that the LED is not any more connected to the (here upper) chassis side where it has its "+" connection.
3. Soldered the grey and yellow cables to the LED PCBs.
4. Use the black clip to connect red and black to its chassis halves.
5. Check with a meter that there is no connection short between motor leads and chassis nor chassis and light feeds.
If you look at the LED, you can see as well that I cut it smaller and angled 45 degrees in order to make it shine more into the headlight and less into the cab.
